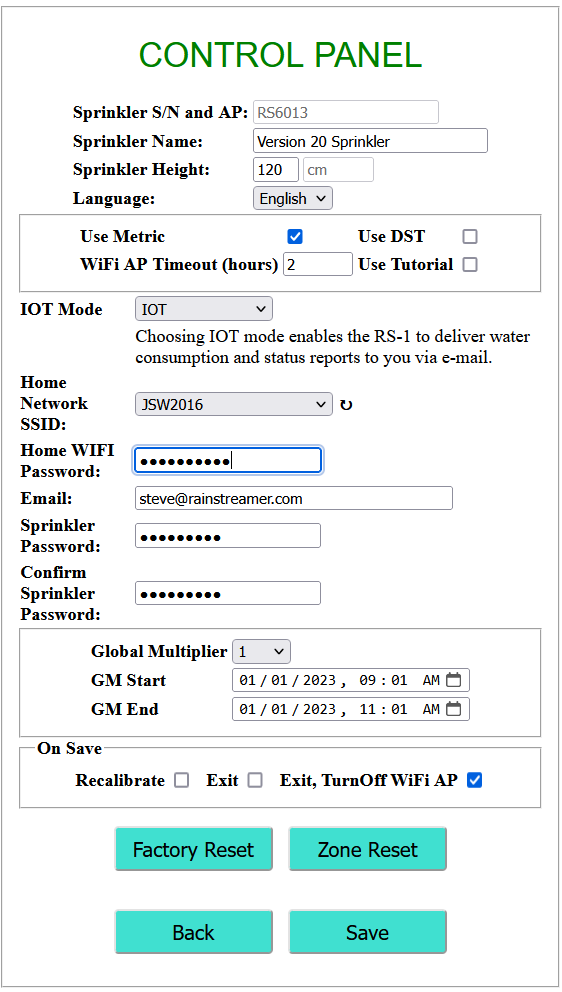

The Control Panel enables edits of the RS-1 configuration. RS- configuration is completely established in the First Use Setup Screen, however you may wish to change certain parameters later.
Since the First Use setup screen disappears after several hours of use, the Control Panel is the only method of changing parameters in a previously configured RS-1.
Sprinkler S/N and AP number are not changeable.
Sprinkler Name can be changed at any time. It is a maximum of 26 characters.
Sprinkler Height can be changed at any time. Please ensure correct Metric/US units are in use.
Language is English for now.
Use Metric changes between Metric and US. The system choice applies to lengths, areas, volumes and flow rates.
Use DST cause the RS-1 to alter its watering scheduled to conform to Daylight Savings Time, IF DST IS IN OPERATION in the RS-1’s area. The RS-1 detects the “presence” of DST by communication with the mobile computing device.
WiFi AP Timeout may be chosen to be any number. Use a very high number to keep it on permanently.
Use Tutorial enables a quick review of RS-1 operation information at every log on.
IOT Mode chooses between Standalone, ValveController and Cloud Control.
If Cloud Control mode is selected, a new box will open and you will have the opportunity to edit or add Home Network SSID and Password, and your email adress.
Global Multiplier causes a “Multiplier” to be applied to all watering that occurs between GM Start (date and time) and GM End (date and time).
The Global Multiplier is normally set to one.
It can be increased to apply a greater amount of water in hot weather or a lesser amount of water in cold weather.
It can also be set to 0 to effectively deny watering between GM Start and GM End.
Global Multiplier, GM Start and GM End can be set manually or by Cloud Control Network Services.
If you are using Cloud Control, you may observe changes to all three of these parameters as Cloud Control modulates the watering schedule according to the prevailing weather.
On Save determines the behavior of the RS-1 session when the Save button is pressed.
Recalibrate reruns control to the Calibration screen when the Save button is pressed.
Exit leads to a neutral “Session Finished Screen”, leaving WiFi Enabled.
Exit, TurnOff WiFi AP leads to a neutral “Session Finished Screen” and immediately disables the RS-1’s WiFI AP.
The Back Button returns to the Zone/Spot plan without saving any Control Panel Changes.
The Save Button saves the Control Panel changes and exits as described above.
The Factory Reset button returns the RS-1 to its as delivered condition. All internal data files, SSIDs, passwords, and setting and the Zone/Spot Plan are permanently erased.
The Zone Reset button erases the Zone/Spot plan, leaving all other internal data files, SSID, passwords and settings intact.
